Brand: Nowicki
Product Description:
l Multi models to choose, variable capacity from 60L~750L.
l Hydraulic loading and unloading system.
l Automatic water dosage system.
l Stuffing temperature control.
l Construction meets the highest hygiene requirements.

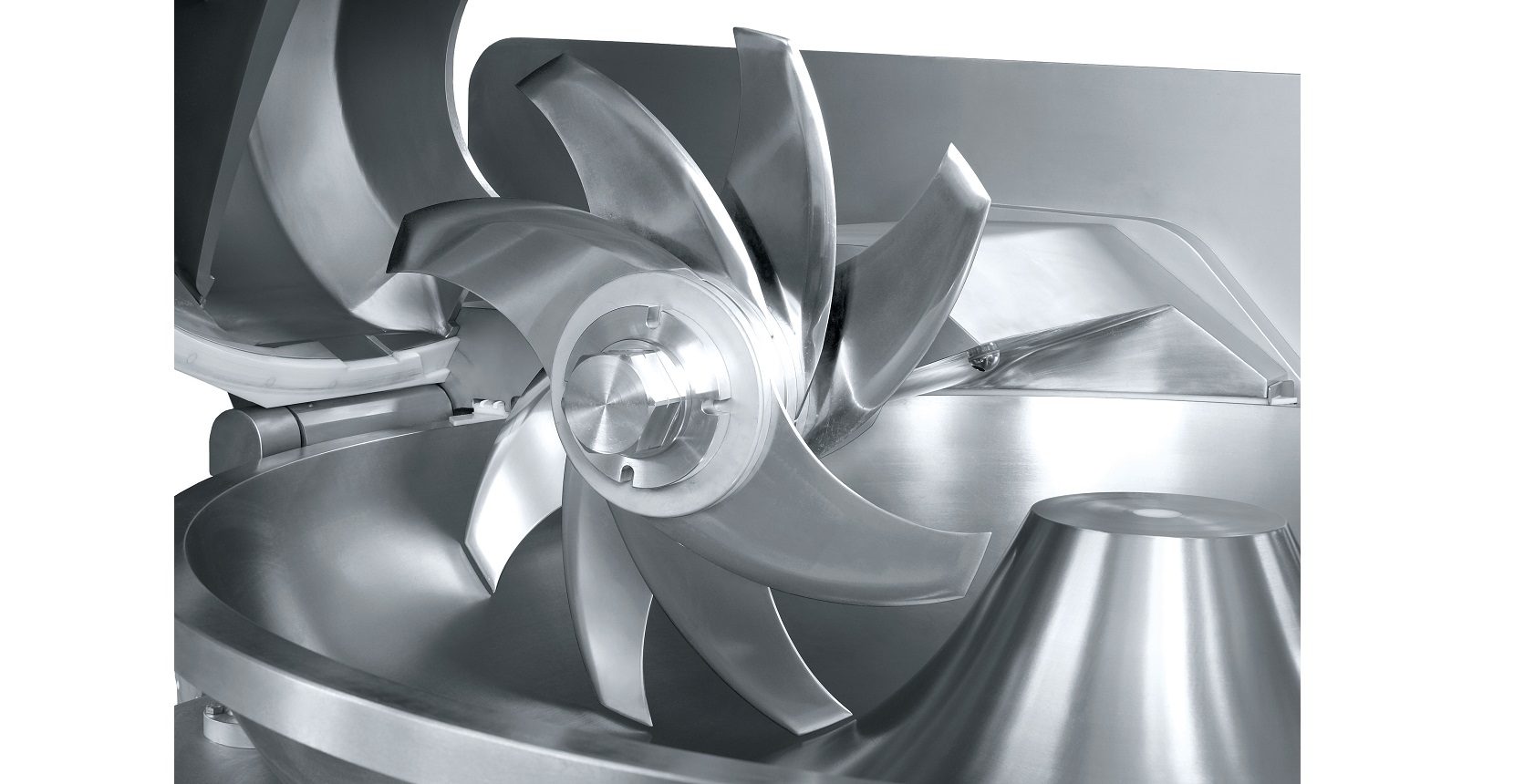

l Head with cutting knives not requiring regulation of distance from bowl.
l Cutting in vacuum environment – max. 90%.
型号 | KN-60 | KN-90 | KN-125 | KN-200 | KN-330 | KN-550 | KN-750 | |
Bowl capacity | dm³ | 60 | 90 | 125 | 200 | 330 | 550 | 750 |
Cutterhead speed (adjusted) | rpm | 200÷6000 | 200÷5500 | 200÷5000 | 200÷4800 | 200÷4500 | 200÷3800 | 200÷3500 |
Bowl speed (adjusted) | rpm | 2÷15± 3% | 2÷18± 3% | 2÷20± 3% | 2÷20± 3% | 2÷20± 3% | 2÷15 | 2÷15 |
dimensions L/W/H | mm | 1650/1310 /1190 | 1550/1540 /1175 | 2530/2000 /1850 | 2820/2550 /2080 | 3070/2530 /2160 | 3530/2970 /2400 | 3850/3080 /2650 |
Weight | kg | 1170 | 1300 | 2480 | 3750 | 4200 | 5500 | 7930 |
型号 | KN-200 V | KN-330 V | KN-550 V | KN-750 V | |
Bowl capacity | dm³ | 200 | 330 | 550 | 750 |
Cutterhead speed( adjusted) | rpm | 100÷4800 | 200÷4500 | 100÷3800 | 100÷3500 |
Bowl speed (adjusted) | rpm | 2÷20±3% | 2÷20±3% | 2÷15±3% | 2÷15 |
cutting cycle vaccum | % | 40÷65（90） | 40÷65（90） | 40÷65（90） | 40÷90 |
dimensions L/W/H | mm | 3075/2900/2060 | 3250/3160/2180 | 3975/3510/2400 | 3980/3960/2650 |
Weight | kg | 4750 | 6300 | 9400 | 11800 |
