MAP Packaging Savings 1: Excellent MAP Packaging Machine how to help you to save packaging materials

发布日期:2022-12-14

In the initial stage of the development of MAP packaging, we basically focus on the realization of the basic functions of the equipment, that is whether the machine can be stable to make the pumping, inflation and sealing functions, and the use of packaging materials is not particularly concerned about the cost, on the other hand, is also due to the initial product premium is high, the overall cost of packaging materials is relatively not high.


With the rapid development of the market in recent years has led to increased competition, the gross profit of the product is constantly declining. Package material cost has become a very important cost, so many companies who repurchase MAP packaging equipments have gradually the utilization rate of the machine on the package material as an important procurement reference indicators.

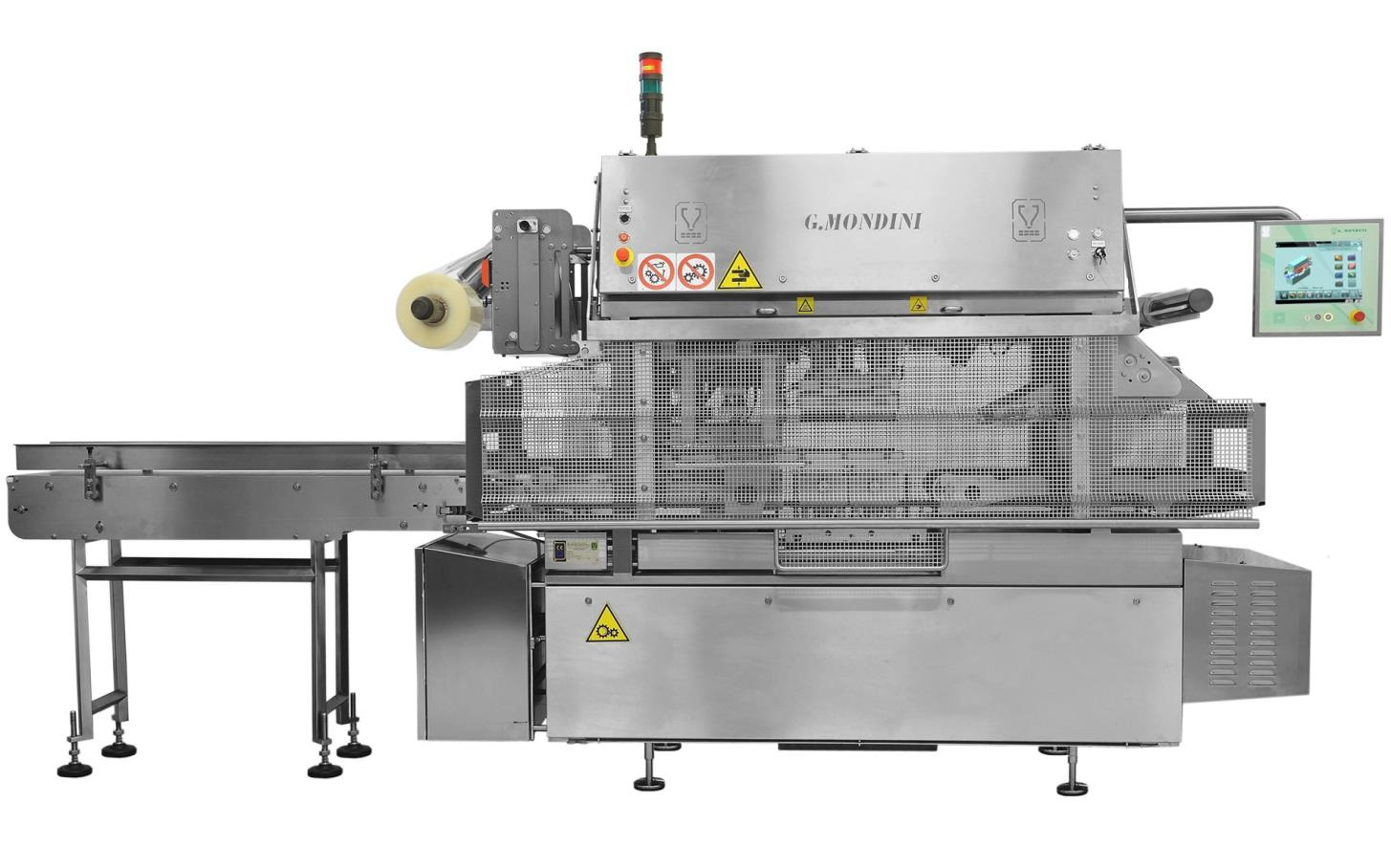

trave 350.png

The innovative die design of the Mondini Trave 350 makes the machine well suited to meet the strong demand of MAP packaging producers for improved package utilization, offering significant package saving advantages over similar machines. The general die design with spacing between each sealing position (see the picture below, the dark part is the unavailable packaging film in a single cycle) is designed to allow the film to withstand more tension during the work. And thanks to the good tension control mechanism of the Mondini Trave350 film drive, the film is subjected to a uniform tension during the work, which makes it possible to eliminate the spacing between each sealing position, creating a film-saving design.


usual die arrangement


TRAVE 350模具布置.jpeg
Mondini Trave 350 die arrangement


Package material saving calculation:

Take 224x133mm package box with 1.4 die layout as an example:

 Usual die arrangement

Mondini Trave350 die arrangement

film width:305mm
The amount of film used for a single cycle is approximately:0.19㎡

film width:305mm
The amount of film used for a single cycle is approximately:0.18㎡

Mondini Trave350's single cycle material savings:0.18-0.19/0.19=5.3%;
If your annual film usage is $1,000,000, then the savings in packaging materials can be as much as $53,000 a year.


Editor: Bo Yang
